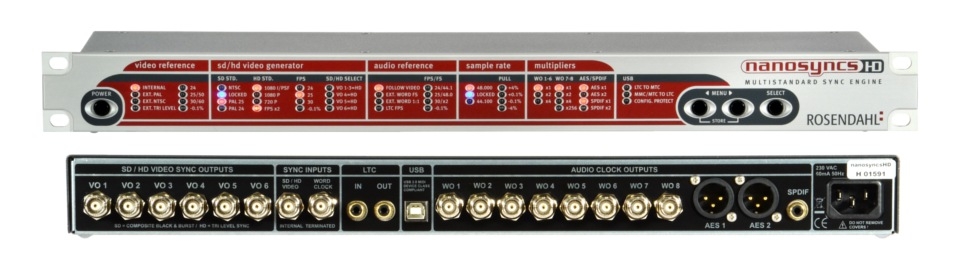

Rosendahl Nanosyncs HD

multistandard sync engine

audio word clock, AES/EBU reference, video sync, tri-level sync and timecode generator



Price Guide
Daily Hire: £12
Weekly Hire: £48



8 word clocks, 2 AES/EBU and 1 SPDIF reference outputs
6 video sync outputs, individually configurable as standard video syncs or HD tri-level syncs
LTC (SMPTE 12M) timecode output.
video reference input, accepts standard and HD tri-level signals
word clock input, LTC timecode input
DDS audio clock generator, jitter < 12ps RMS within the audio spectrum (20Hz -20kHz), sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz including all +/- 0.1% or +/- 4% pulls
Internal timebase: 0.2 ppm accurate, temperature compensated crystal oscillator
SD video sync generator: 23.98 FPS, 24 FPS, PAL 25 FPS, NTSC 29.97 FPS
HD tri-level sync generator: 720p, 1080p and 1080i at 23.98, 24, 25, 29.98, 30, 50, 59.97, 60 FPS
Timecode generator: 23.98, 24, 25, 29.98, 30 FPS, local or remote controlled via USB
Timecode reader: all rates, LTC to MTC conversion, generator jam sync
USB: device class compliant audio device with MIDI port, MTC, MMC and Rosendahl SysEx, free remote software nanoSETUP for Mac OSX and Windows available
generates black dolby compatible bi-level syncs
generates pilot tones for MAG machines
configurable NTSC pedestal 7.5 IRE
Adjustable H-phase, SC-H phase settings
