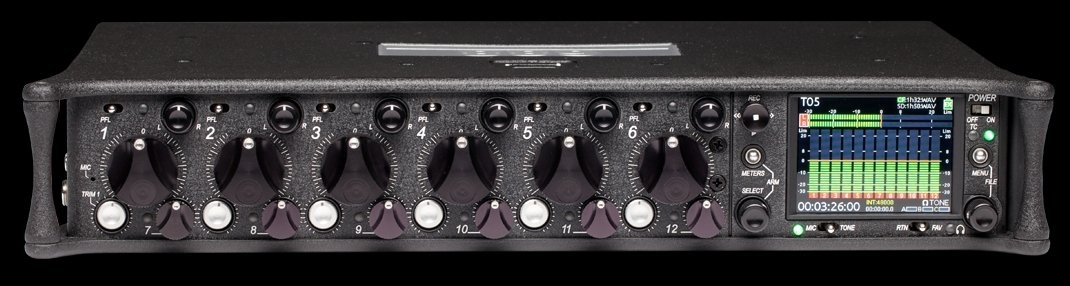

SOUND DEVICES SD688

Description

Key Features
12 analog inputs: Six mic/line preamps plus six line inputs all with front-panel faders & PFLs.
16-track recording to SD & CompactFlash cards; Timecode-stamped WAV & MP3 files
MixAssist 12-input auto-mixer.
Optional Accessories: SL-6 power distribution & 6-ch SuperSlot™ wireless receiver system; CL-6 input controller with LED metering & transport controls.
Both SL-6 and CL-6 can be conected to the 688 at the same time. SL-6 to top panel, CL-6 to bottom panel.
Eight output buses: L/R mix plus Aux 1-6; transformer-balanced XLR & Hirose outs for freedom from ground loops Two AES42/AES3 inputs, eight AES3 outputs.
Direct menu control of SuperSlot-compatible wireless (with SL-6).
PowerSafe protects files from power loss.
2-second power on-to-recording.
Flexible digital mixing and routing.
Supports all sample rates up to 192kHz.

Adjustable input & output delay.
Three camera returns & dedicated COM return.
Internal & external slate mic inputs.
Ambient TC generator and reader and internal TC backup battery.
Easy to navigate interface, 1000-nit LCD visible in all light conditions, configurable metering.
USB Keyboard for metadata entry.
User-configurable headphone presets.
Light-weight, durable carbon-fiber chassis.
Powered by AA-battery (x5), external DC or NP1 via SL-6.

Price Guide
Daily Hire: £60
Weekly Hire: £240
