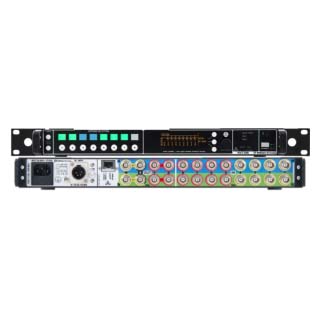

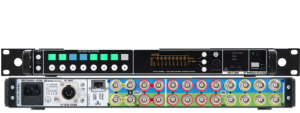

Wisycom MAT288


RF Diversity Wideband Programmable Matrix Combiner 8:1 or 8:4 or 2 x 4:2

Categories: , ,


Wisycom MAT288 is a programmable diversity matrix combiner. This unique device allows to combining RF coming from 8 areas (a couple of diversity feed) on the fly thanks to a matrix of solid state switches. It is designed to have the greatest reliability, with redundant power supply (AC and DC, DC optional). All operations can be remote with Ethernet. Typical applications are a production center where a control room has to work with several STUDIOs also at the same time or a THEATRE that needs time to time to combine main stage, foyer or lobby. Also your ENG or OB-Van facility will benefit this freedom to manage different RF areas.

Diversity combiner 8:1 or 8:4 or 2 x 4:2 (sw configurable)
Wide bandwidth 150-1160 MHz operation
Redundant power supply, AC and DC powered (DC optional)
Remote management and monitor of alarms thru Ethernet 10/100 base TX
Antenna booster supply toggled on each input independently
Voltage and current monitoring on each booster supply with alarm
Programmable attenuators on each inputs
Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)
light window where the user can enter their own text to identify the 8 areas
