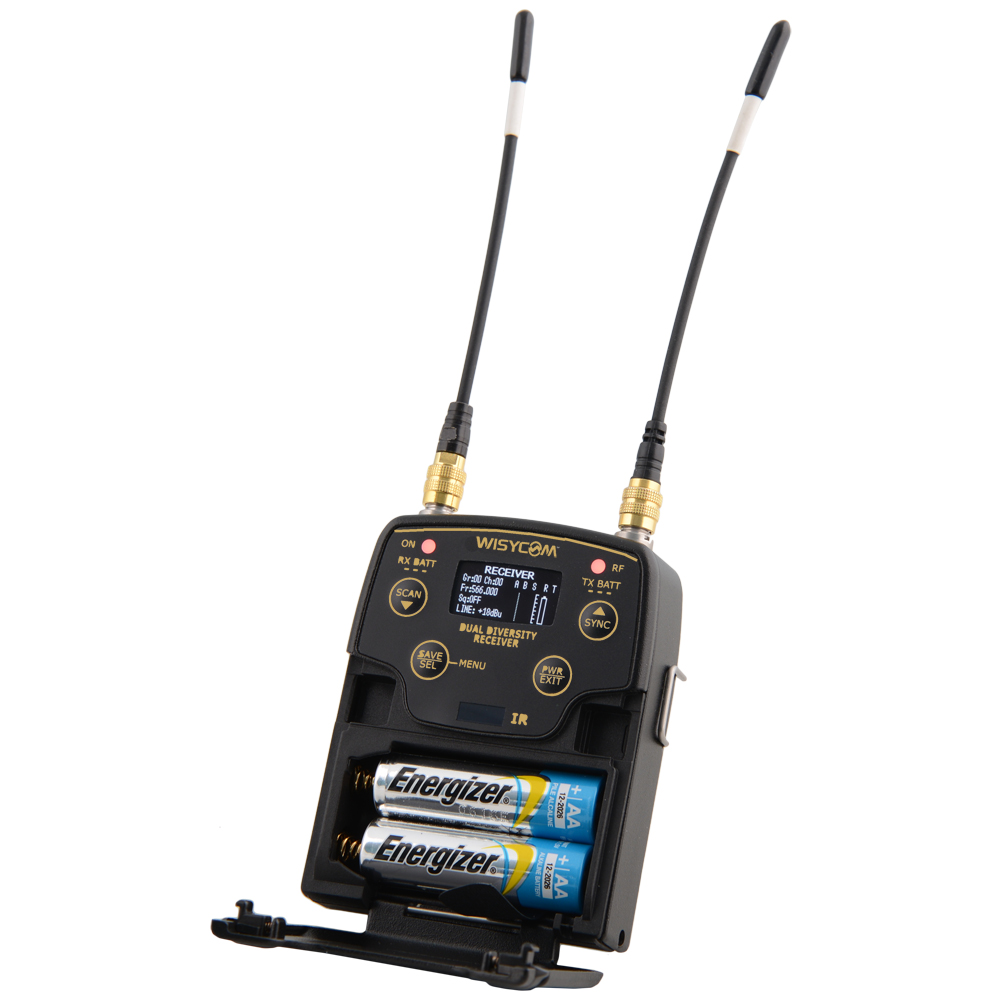

Wisycom MPR52


MPR52-ENG is a compact two channels receiver designed for professional ENG applications.
The new MPR52 has two built-in diversity receivers with both analogue and digital outputs. With up to 790 MHz bandwidth in the 470/1260 MHz range, the MPR52 features next generation multiband front-end filtering.


Price Guide
Daily Hire: £25
Weekly Hire: £100

Categories: ,



Two channels diversity receiver
DSP Analogue & Digital Audio Output (AES3)
Up to 790 MHz bandwidth in 470/1260 MHz range
Next Gen Multiband front-end filtering:
– High Q moving filter in 470-960 MHz
– High Q moving filter in 960-1160 MHz (DME)
– Country specific saw filters: USA 940-960 MHz & Japan 1240-1260 MHz or 806-810 MHz
Wideband and Narrowband DSP-FM operation (SW selectable):
– Narrowband allows more 50% band efficiency
– Narrowband allows about 3dB extra sensitivity and noise immunity
Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup
High contrast OLED display
Automatic scan & transmitter programming through infrared
DSP based for extreme flexibility and multicompanding operations
Miniature design with integrated battery pack:
– MPRLBP (Cameron Sino reference No: CS-WMR500SL)
– 2 x AA batteries
Operation and charger (lithium) thru USB connector
