Wisycom MATF
£250.00
Wisycom MATF. Fibre and BNC multi zone antenna control.
With up to eight RF zones in true diversity (8:4 or dual 4:2 outputs), electrical BNC inputs plus fibre input modules, and a wide operating range of 170 MHz up to 1.260 MHz, MATF adapts to installations at scale.
Description

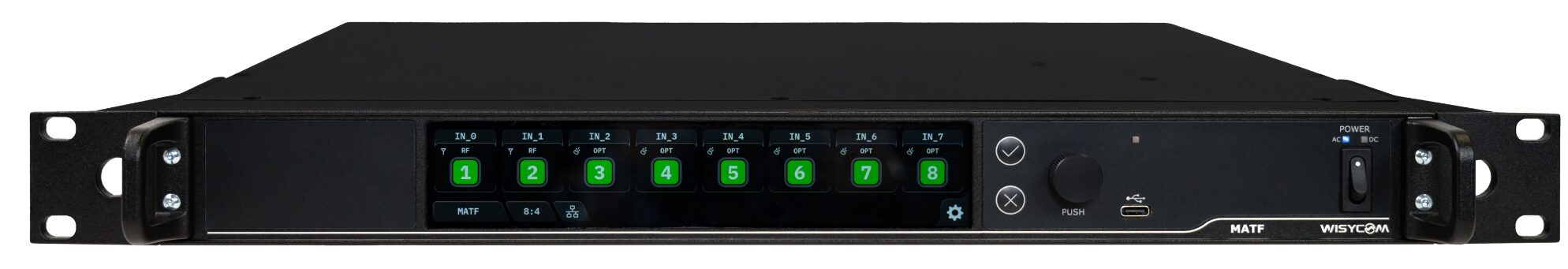

Wisycom MATF. Wisycom’s new Wideband Antenna Matrix for complex RF & RF-over-Fiber designed for complex, multi-zone RF infrastructures supporting both electrical RF and RF over fibre in one centralized platform.
With up to eight RF zones in true diversity (8:4 or dual 4:2 outputs), electrical BNC inputs plus fibre input modules, and a wide operating range of 170 MHz up to 1.260 MHz, MATF adapts to installations at scale.
A built in Frequency Spectrum Analyser helps assess inputs before combining, while full-colour touchscreen and Ethernet-based control make remote management and labelling straightforward for centralized apparatus rooms and on the large-scale events with multiple RF pickup zones. Perfect for integration with Wisycom’s BFL2 M0 and M2 fibre endpoints.

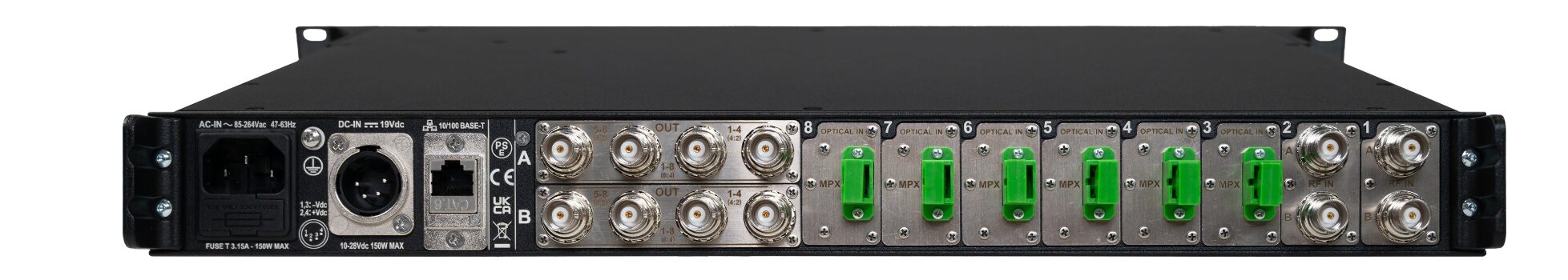

Currently configured for 2 x diversity BNC and 6 x RFoF multiplex.
MATFCCMMMMMM 2 Coaxial Inputs and 6 Fiber Inputs (multiplexed), i.e. M2 versions for BLF-T2
Price Guide
Daily Hire: £POA
Weekly Hire: £POA
