Wisycom MPA4
£12.00

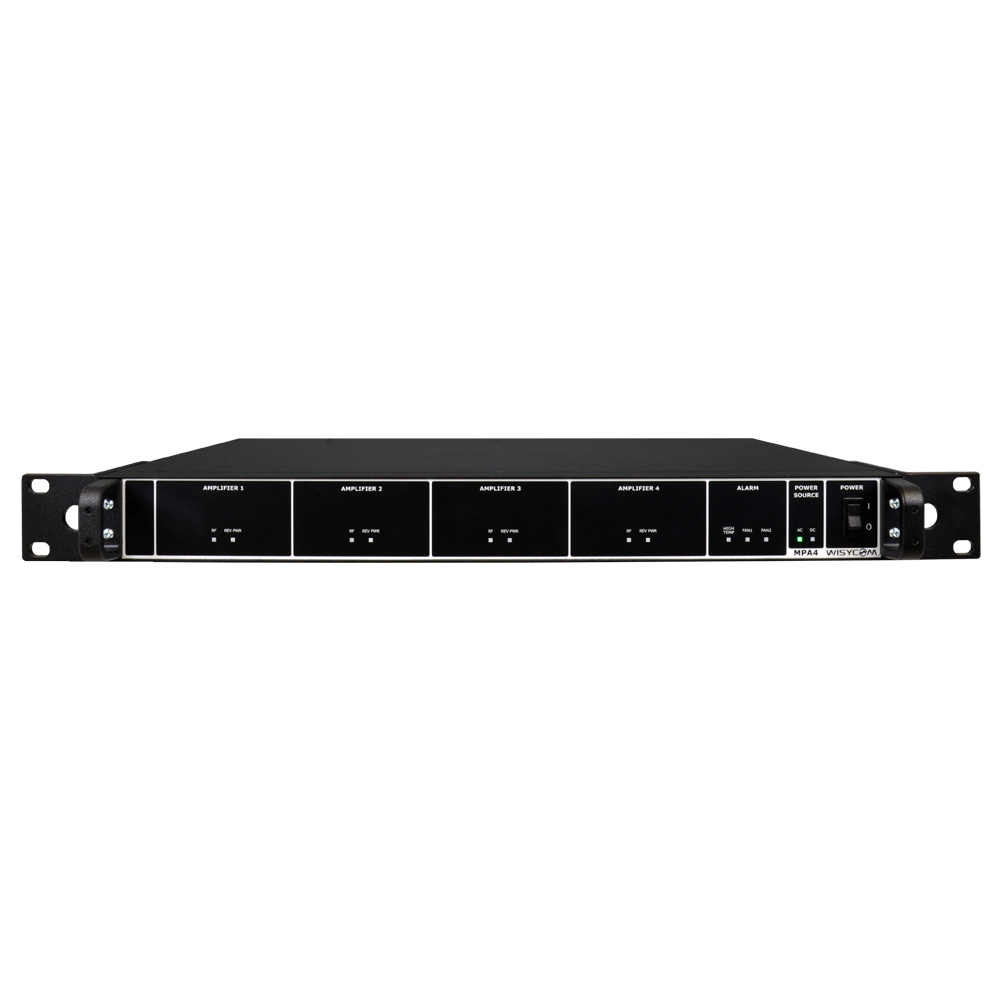

MPA4 470-620MHz rack is quadruple power amplifier optimized for extreme linearity.
It is perfect match to amplify remote signals or works with Wisycom MFL fiber system to setup a local retransmission. Its extreme linearity allows to amplify multi-carries without facing intermodulation issues.
Price Guide
Daily Hire: £30
Weekly Hire: £120
Description
Wisycom MPA4 470-620MHz rack is quadruple power amplifier optimized for extreme linearity.
It is perfect match to amplify remote signals or works with Wisycom MFL fiber system to setup a local retransmission. Its extreme linearity allows to amplify multi-carries without facing intermodulation issues.
Frequency ranges BL: 470 ÷ 620 MHz
Input/output gain 30.5 dB
OIP3 > 50 dBm
OP1dB 32dBm
Amplifier linearity ± 0.5 dB (typical)
Noise figure 9 dB
Absolute Max Input Power
+20dBm DO NOT EXCEED MAX INPUT RF POWER!
Max Input power 0dBm with 1 carrier, -13dBm with 4 carriers (OIP3 optimize)

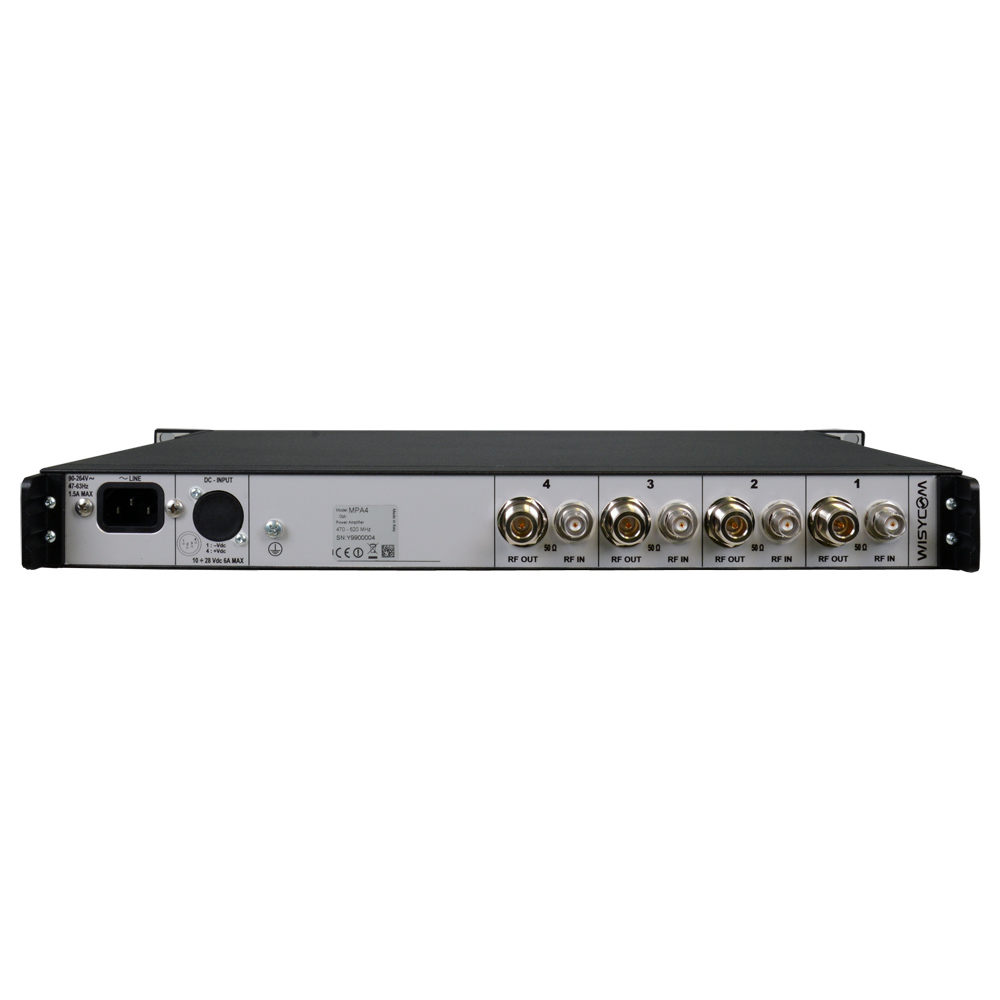

Antenna connector 4 x BNC type female input connectors
4 x N type female output connectors
